Esfarayen-Neqab-Joghatai gas expansion pipeline

Contract Date:

2015

عنوان مقدار
ClientIranian Gas Engineering and Development Company
AdvisorFarayand Sazan Energy Consultant Engineering Company
Contract Period14 months + 12 months (maintenance period)
LocationBetween Esfarayen, Neqab, and Joghatai (Khorasan Razavi Province)
StatusFinished

Description

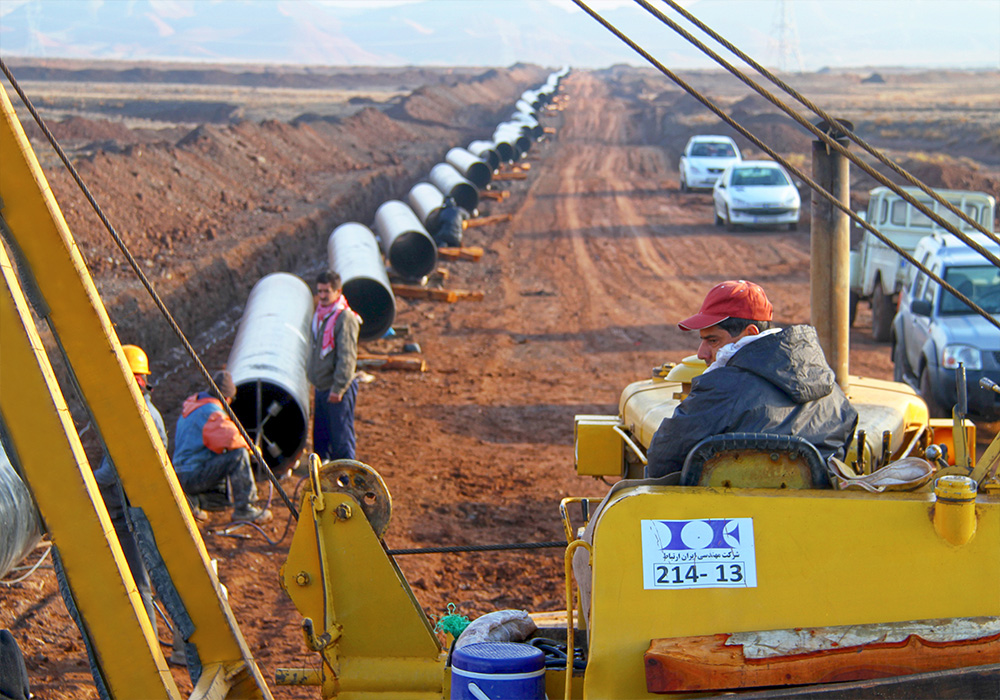

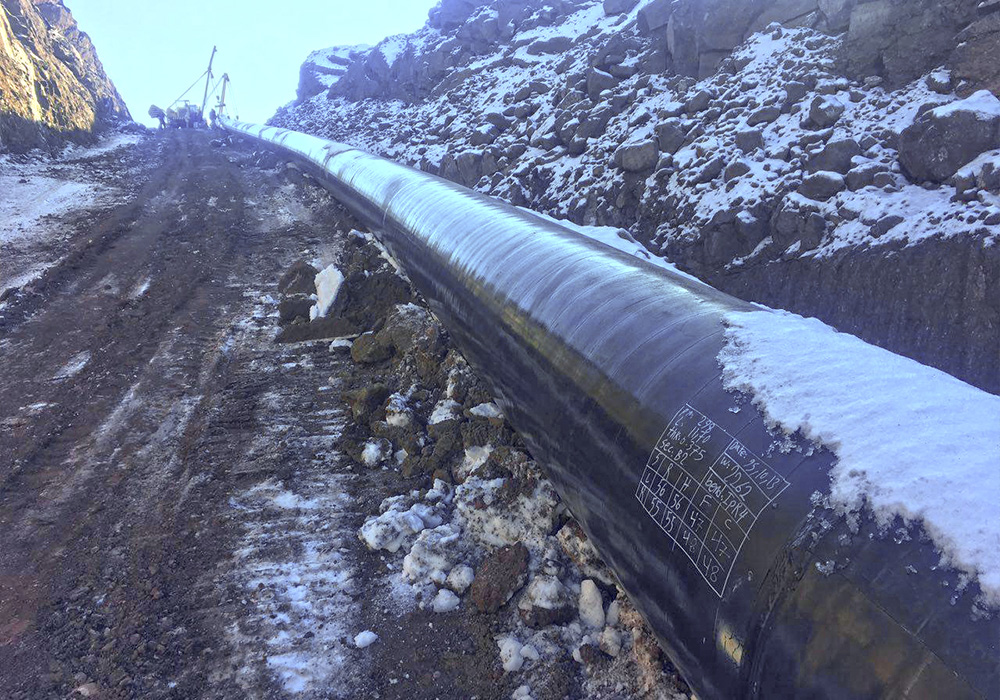

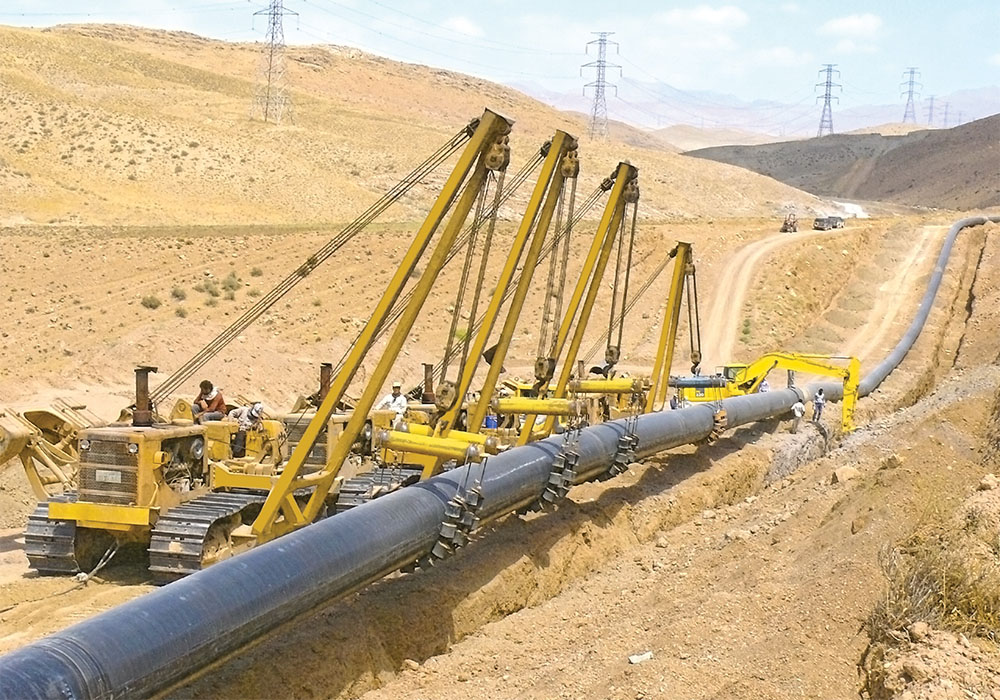

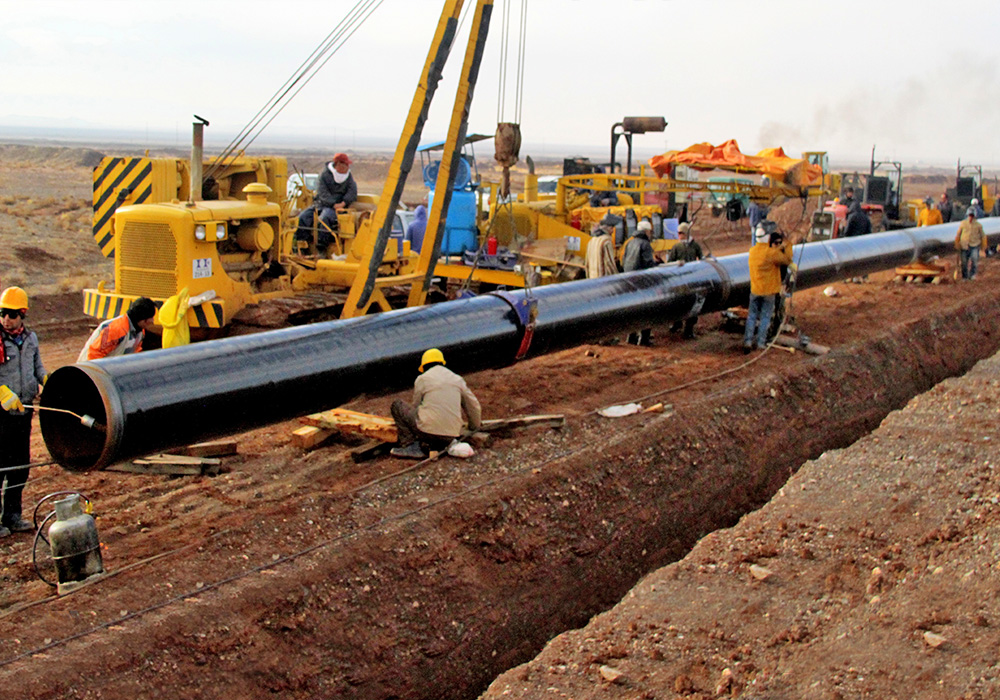

Esfarayen-Neqab-Joghatai 20- and 30- inch gas expansion pipeline was aimed at delivering the required gas to Sabzevar Steel Plant, expanding the branched pipeline of Esfarayen, promoting residents’ welfare and well-being, and create jobs in the region. The operations were constructed in an area starting from 547th km on North-Northeast 48-inch gas transmission pipeline (Parchin to Sang Bast, near Sabzevar). In the first section, a 30-inch pipeline was laid from the starting point of the project to the point where a branched pipeline heads toward Sabzevar Steel plant. The first section has a length of 48 km. In the second (final) section, a 20-inch pipeline was laid from the branched pipeline towards the end of the pipeline route where it meets Esfarayen 10-inch pipeline. The final section has a length of 35 km.

In the point where the 30-inch pipeline meets the 20-inch pipeline, a 12-inch pipeline (3.5 km) is branched and headed toward Sabzevar Steel Plant to provide the facility with the fuel required to run its operations.

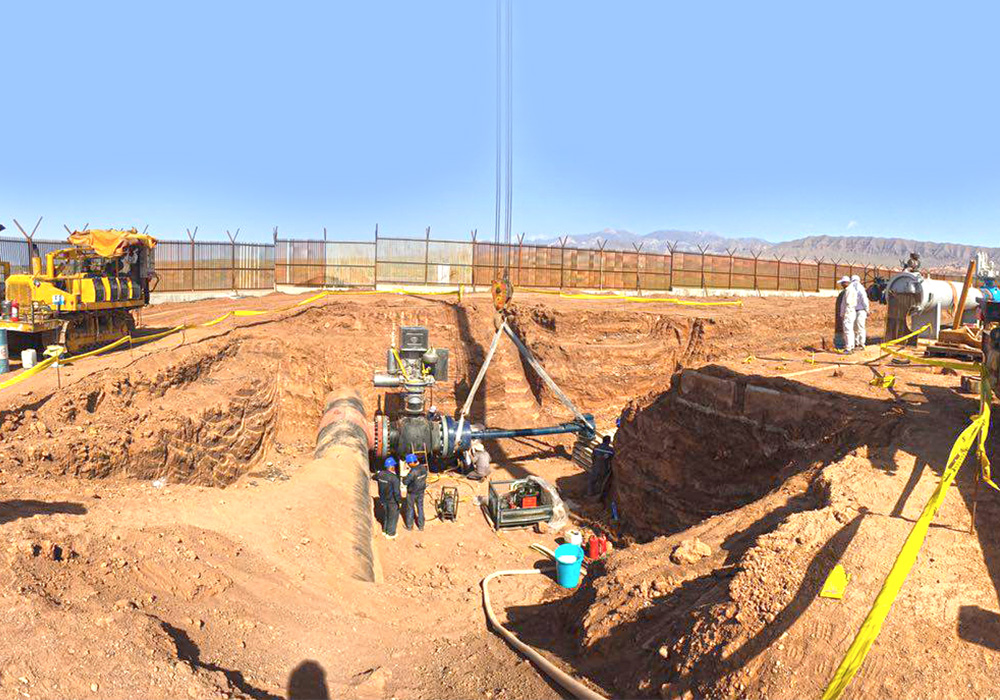

The project consists of 3 pig-launcher stations, 4 LBV stations, and 2 CPS stations.

Scope of Work

  • Supply of all materials and spare parts needed for the implementation of the project for a duration of 2 years
  • Implementation of all pipeline (12, 20, and 30 inch in diameter) operations, 5.86 km
  • Construction of 7 LBV, and pig- launcher and receiver stations
  • Construction of 2 CPS stations for pipeline maintenance
  • All land acquisition operations (to the stage where the check should be issued)
  • Drawing as-built plans
  • Installing pipeline markers

Key Statistics

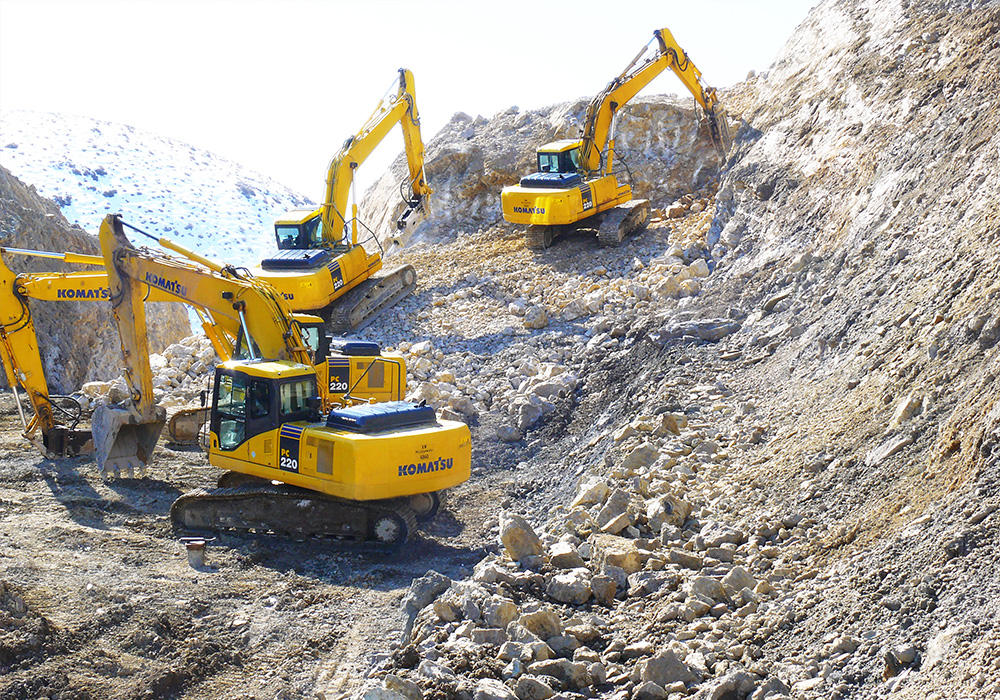

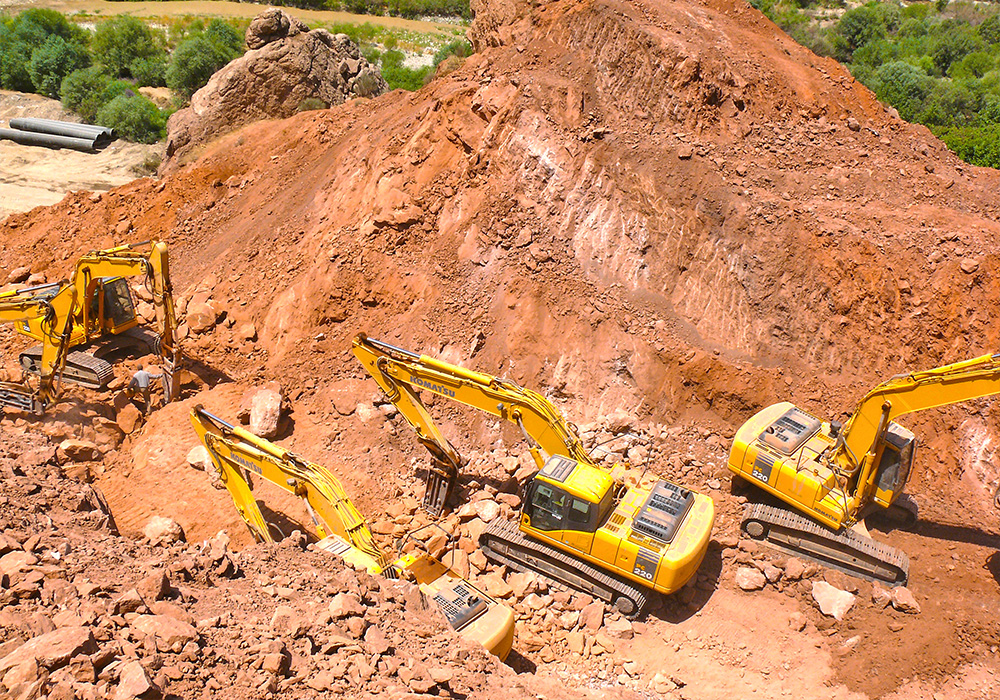

  • Excavation in earthy and rocky terrains, and explosion-prone areas, 1,500,000 m3 (mountains and plains)
  • Concrete mix pouring 120,000 m3
  • Construction of metal fences for stations, 180,000 kg

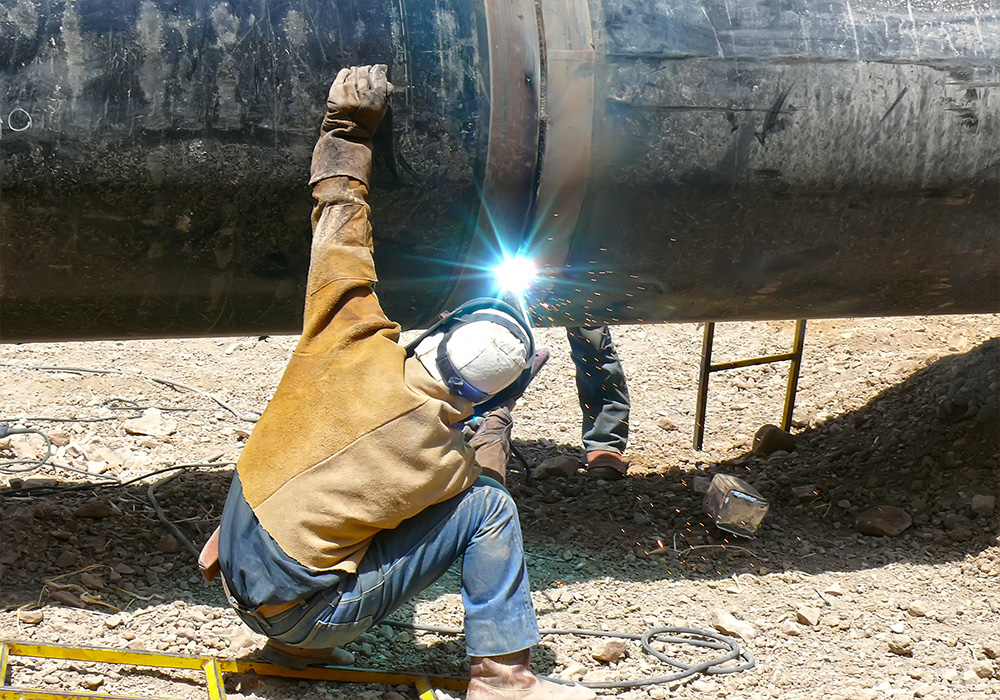

  • Radiography of 8,500 sleeves in different sizes
  • Supply and pouring of sieved soil around the pipes, 120,000 m3
  • Pouring reinforced concrete around the pipes laid on the river bed (C.C.W.), 500 m
  • Transversing the major road (5 points) and railway (3 points)
